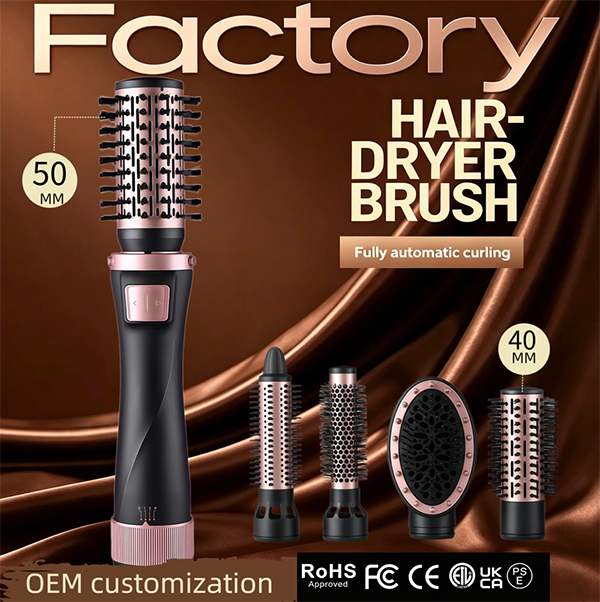

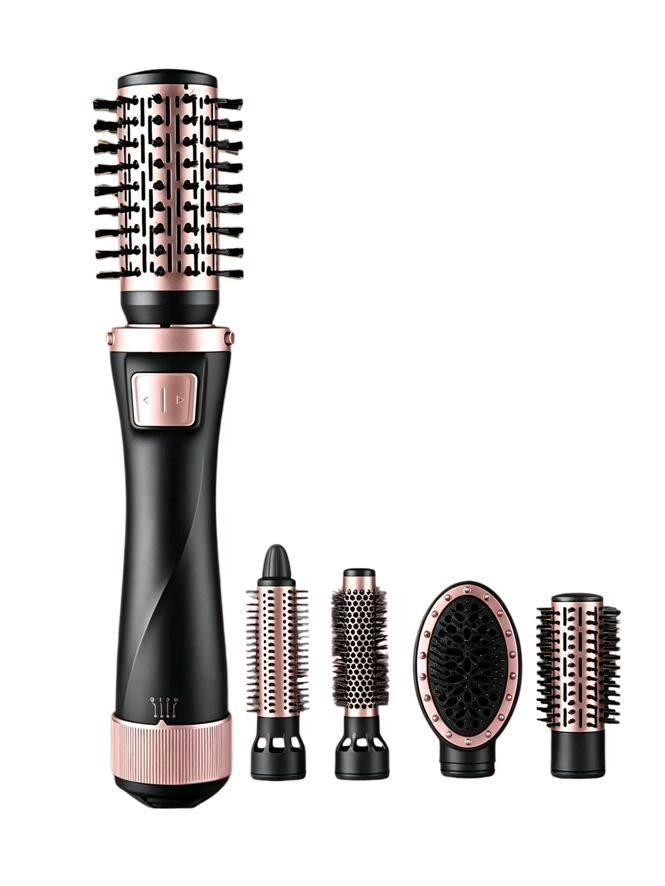

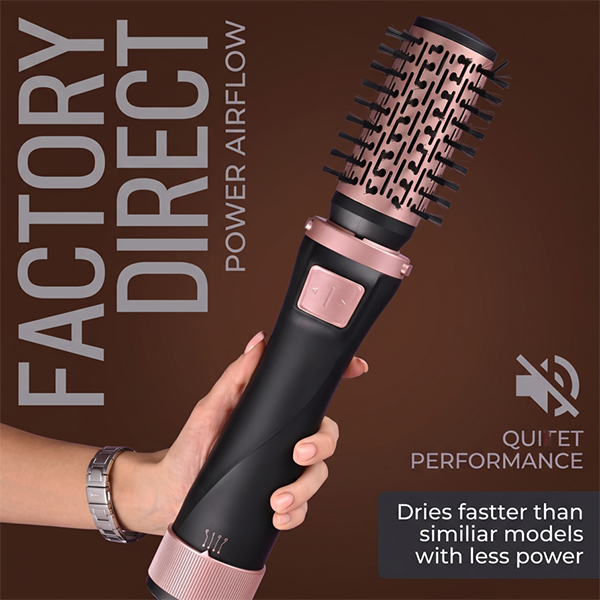

This is a high-performance 230V professional hair dryer designed for household and commercial scenarios. It adopts HL 365S 24V DC motor and WL-20A180-01 DC 24V gear motor, equipped with CCS9 120℃ overheat thermostat for safe temperature control.
Matched with standard safety accessories including X2 safety capacitor, SL-15 professional switch, VDE certified plug and high-spec power cord, the product passes strict high voltage, drop and tension tests to ensure stable and safe operation. It features three working modes (cold, high heat, low heat) with stable power, rotating speed and airflow, low noise, meeting daily and professional hair drying demands.
Test Environment: Ambient temperature 18℃, background noise 54dB; Temperature test distance: 10cm, noise test distance: 100cm.
Core Material Specifications
|
No. |
Part Name |
Specification |
|
1 |
Thermostat |
CCS9 120℃ |
|
2 |
Motor |
HL 365S 24V DC |
|
3 |
Gear Motor |
WL-20A180-01 DC 24V |
|
4 |
Switch |
SL-15 6A 250V / 12A 125V |
|
5 |
Power Cord |
H05VVH2-F 2×0.75mm²×1.85m |
|
6 |
Plug |
VDE 16A 250V |
|
7 |
Monolithic Capacitor |
224 |
|
8 |
Safety Capacitor |
0.22uf X2 275V |
Electrical Performance Parameters (230V)
|
Mode |
Power (W) |
Speed (RPM) |
Air Velocity (M/S) |
Temperature (℃) |
Noise (dB) |
|
Cold Wind |
295 |
22200 |
5.7 |
39 |
77 |
|
High Heat |
852 |
22200 |
5.7 |
82 |
77 |
|
Low Heat |
425 |
14200 |
3.2 |
65 |
63 |
Reference Test Data
|
Mode |
Power (W) |
Speed (RPM) |
Air Velocity (M/S) |
|
Low Heat |
420 |
15600 |
4.4 |
|
High Heat |
855 |
23250 |
6.8 |
|
Cold Wind |
294 |
23500 |
6.2 |
Safety & Reliability Test
|
Test Item |
Test Content |
Result |
|
Thermostat Action Time |
100% block: 3″22 / 3″48 |
- |
|
Thermostat Recovery Time |
4′05″ / 4′10″ |
- |
|
High Voltage Test |
3750V, 0.5MA, 2S |
PASS |
|
Drop Test |
3ft height drop on cork board, 3 times |
PASS |
|
Power Cord Tension Test |
20lbs tension for 1 minute |
PASS |
|
Power Cord Length Test |
Exposed length 1.80M (excluding plug) |
PASS |
